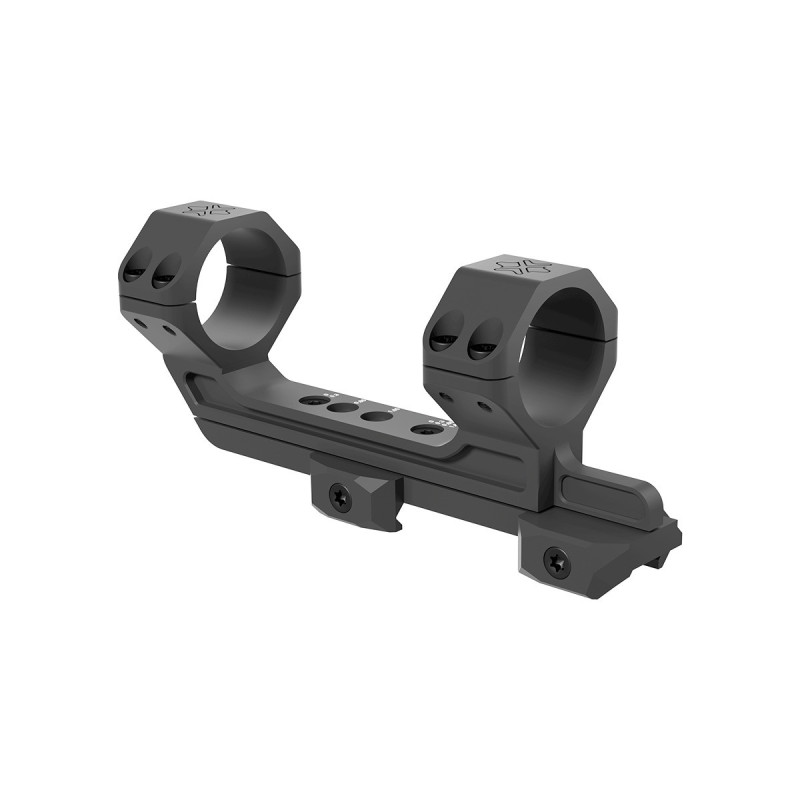

Vector Optics 30mm 1-Piece Adjustable Extended Picatinny Mount – Precision, Flexibility, and Ruggedness Combined
Modular Mounting Platform for Optimal Eye Relief
The Vector Optics 30mm 1-Piece Adjustable Extended Picatinny Mount is engineered for shooters who demand precision alignment, maximum flexibility, and rock-solid stability from their scope mount. Whether you’re fine-tuning for long-range accuracy, setting up a precision rifle build, or adapting to different optics and shooting positions, this mount offers a level of versatility rarely seen in a one-piece design.
Adjustable Forward Offset – Dial in Your Ideal Shooting Position
One of the standout features of this mount is its adjustable forward extension. Thanks to a modular front plate, you can select between three preset offset positions — 0.3", 0.65", or 1.65" — allowing you to customize eye relief based on your rifle's stock length, scope size, or personal ergonomic preferences. This is especially useful when using scopes with long eye relief or when mounting on AR-style platforms with variable shooting stances.
Ideal Height for AR-Style and Tactical Rifles
With a central height of 38mm (1.5 inches) from the base to the center of the rings, this mount is perfectly suited for modern tactical rifles and flat-top AR-15/M4 receivers. This height ensures a natural cheek weld, clears most front sights and accessories, and allows for comfortable scope use while maintaining consistent sight picture.
Military-Grade Construction and CNC Precision
Constructed from 6061-T6 aircraft-grade aluminum alloy and fully CNC machined, the mount is built to endure hard use without losing zero. The full-metal construction is anodized in a durable matte black finish for reduced glare and corrosion resistance. Each ring is secured with four robust M4 Torx screws, delivering high clamping force and torque stability.
Dual Bolt Clamping System with Anti-Recoil Reinforcement
The base of the mount uses a standard 21mm Picatinny rail interface (MIL-STD-1913) with two reinforced cross bolts and an integrated anti-retreat recoil bar. This setup prevents any movement under recoil, ensuring that your scope remains securely zeroed even on high-caliber rifles or under rapid fire conditions. The bolt-on design guarantees solid retention without relying on quick-detach mechanisms that can loosen over time.
Extended Mount Design with Optimized Ring Placement
The mount has a total length of 139mm (5.47 inches), with a generous 73mm (2.87 inches) gap between the rings, making it compatible with most full-size rifle scopes. The 45.5mm wide rings provide even distribution of clamping force across the scope tube, reducing the chance of tube deformation while maximizing hold.
Applications and Use Cases
- Long-range shooting: Extended offset allows for fine-tuned eye relief, critical in precise shooting scenarios.
- Tactical rifle builds: Maintain a forward-mounted optic position for optimal shooting stance and head placement on AR platforms.
- Precision competition: Lock in a consistent scope position for repeatable results across varying shooting positions.
- Hunting rifles: Ensure proper scope placement on rifles with non-standard receiver lengths or high recoil.
Complete Mounting Kit Included
Each mount includes essential tools to make installation easy and reliable:
- Hex Key – for base bolt installation
- T15 and T20 Torx Wrenches – for precision tightening of ring screws
- Additional Accessories – ensure a secure and complete mounting experience
Technical Specifications
| Specification |
Value |
| Ring Diameter |
30 mm |
| Overall Length |
139 mm / 5.47 in |
| Overall Height |
62 mm / 2.44 in |
| Central Height |
38 mm / 1.5 in (from base to center) |
| Ring Width |
45.5 mm / 1.79 in |
| Gap Between Rings |
73 mm / 2.87 in |
| Forward Extension Options |
0.3", 0.65", 1.65" |
| Material |
6061-T6 Aluminum Alloy (Full CNC Machined) |
| Weight |
154 g / 5.43 oz |
| Mounting Interface |
21mm Picatinny Rail (MIL-STD-1913) |
| Mounting Mechanism |
Two Crossing Bolts + Anti-Recoil Bar |
| Finish |
Black Matte Anodized |
| Screws Per Ring |
4 (M4 x 9mm Torx) |
| Quick Release |
No (Bolt-on only) |
| Included Items |
Hex Key, T15 Torx, T20 Torx, Instruction Manual |
Summary
The Vector Optics 30mm 1-Piece Adjustable Extended Picatinny Mount delivers the perfect balance of precision, durability, and adjustability. Ideal for professional shooters, tactical applications, or hunting setups, this mount allows you to achieve perfect eye relief, secure installation, and consistent performance — no matter the mission.
